Qingdao Migo Glass Co., Ltd. is one of the most reliable manufacturers and suppliers of low-iron patterned solar glass for double glass pv modules in China. With abundant experience, we warmly welcome you to wholesale high-grade low-iron patterned solar glass for double glass pv modules in stock here from our factory. If you have any enquiry about custom service, please feel free to email us.
Products Description
Low-iron Patterned Solar Glass is specially designed for the double glass PV modules. The glass has the characteristics of high light transmittance, low light absorption, low reflectivity, excellent physical strength and remarkable flatness. It is an ideal packaging material for solar thermal and photovoltaic modules. The design of the glass surface pattern reduces the reflectivity of the glass, increases the internal reflection, can effectively absorb solar energy, ensures the maximum transmittance of the sun's rays, and improves energy efficiency.
FEATURES
1. Ultra clear patterned solar glass is also called photovoltaic glass and energy saving glass which mainly used on solar panel because of its super light transmittance rate.
2. Solar panel is a thin layer of optoelectronic semiconductor which converting solar energy into electricity.
3. By considering its efficiency, we are using High-transmittance and low reflection glass for its panel. This high strength glass maintains the best image quality by elimination unwanted distortions with the advanced optical technology.
Low-iron Patterned Solar Glass Specification
| Glass Thickness | 1.6mm, 2.0mm,2.5mm,3.2mm, 4.0mm, 5.0mm |
| Glass Size | Max. size is 1050*2100mm, Customized size, no limit to the glass length, but width no more than 1200mm |
| Glass processing | single side AR coating, silk screen printed, single side AG treatment or drilling |
| Hole Diameter | 20-50mm |
| Hole Position | The distance between hole edge and glass edge can not be less than 10mm |
| Glass application | double glass PV modules, front glass and rear glass |
| Glass LT | without ARC, LT 91.4%, with 1 ARC, LT 94% |
| Certificates | CE, CCC, SGS, SPF |

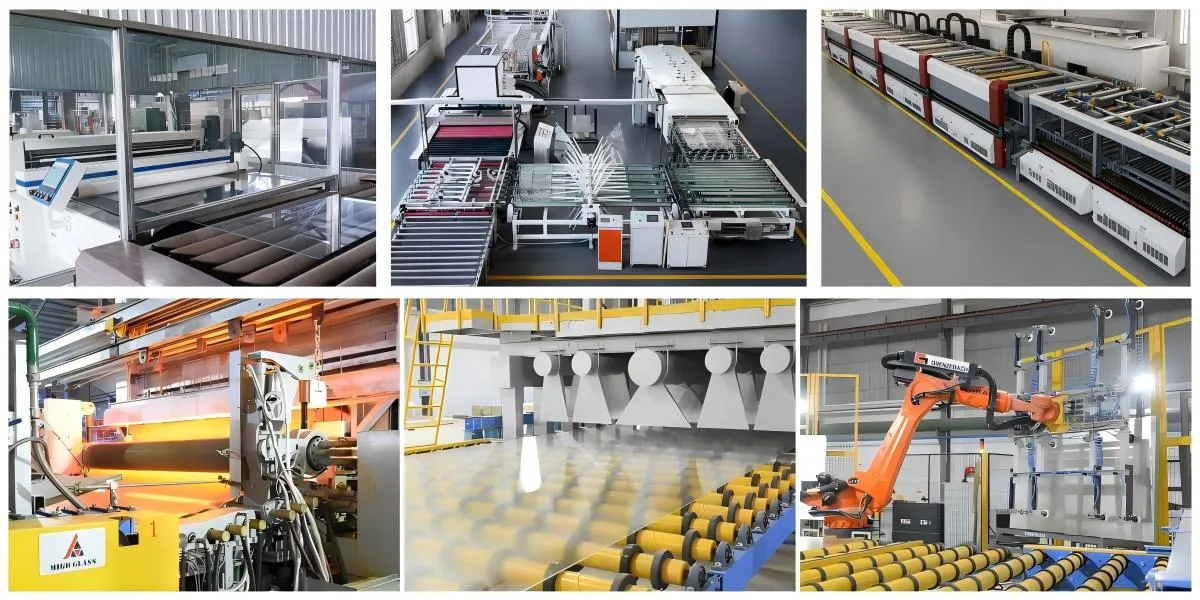

Low-iron Patterned Solar Glass Processing Line at MIGO GLASS
The Advantages of Double glass PV modules
- The Double Glass Silicon Module uses the 2.0mm or 2.5mm AR Coating semi-tempered solar pattern glass.
- The thinnest AR Coating semi-tempered solar pattern glass we can produce is 1.6mm; as the sheet glass, the thinner the glass is, the higher the transmittance is, theoretically, it can promote the output power of the module.
- The 2.0-6.0mm float semi-tempered glass replaced the TPT back sheet, the back glass can be punched or not. The Aluminum Frame is not necessary any more. The Glass on Glass Silicon Module gets greater cost advantages.
