Qingdao Migo Glass Co.,Ltd is one of the most professional high solar reflectivity solar mirror for csp suspension heliostat manufacturers and suppliers in China. If you want to wholesale high quality glass products made in China, you can contact us. We have a professional factory at your service, please feel free to buy customized glass products at a reasonable price from us.
If you want to buy discount and quality high solar reflectivity solar mirror for csp suspension heliostat made in China, you can contact Migo Glass which is one of the best manufacturers and suppliers of high solar reflectivity solar mirror for csp suspension heliostat in China. We have a professional factory at your service, please feel free to wholesale cheap and customized glass products in stock at a reasonable price with us.
High Solar Reflectivity Solar Mirror for CSP Suspension Heliostat
| Material Type | Extra Clear Low Iron Float Glass Mirror |
| Thickness | 3.2mm, 4.0mm |
| Size | Length: ≤ 3300mm Width: ≤ 2134mm |

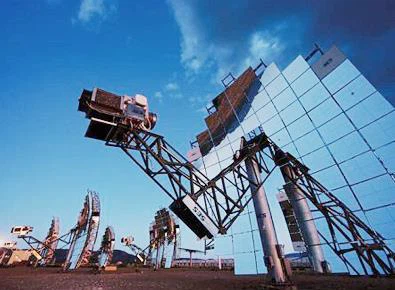

| Applications | CSP Heliostat (Stirling CSP / Tower CSP) Linear Fresnel collectors Solar Parabolic Dishes /Reflectors |
Migo Solar Mirror Features
1. MIGO Solar Mirror is an extra clear high reflectivity float glass mirror perfectly suited for solar applications.
2. MIGO Solar Mirror has totally 7 coating layers on the back of glass (sensitive layer, super sensitive layer, silver layer, passivation layer, first solar paint protection, second paint protection, resistant UV paint protection).
3. MIGO Solar Mirrors are flat and planar mirrors, can be used as Solar Power Tower Mirror, Solar Dish Mirror,or Linear Fresnel Collector Mirror.
4. Solar mirrors are an intrinsic part of any Concentrating Solar Power technology. In all cases, high reflectivity and long durability are paramount.
Main Characteristics
| Light reflectivity | 3.2mm: up to 94% 4.0mm: up to 93.6% |
| Mirror substrate | Ultra Clear Low Iron Float Glass |
| Thickness tolerance | ±0.2mm |
| Dimension tolerance | ±0.5-1.0mm |
| Specific weight (kg/m²) | 3.2mm: 8 kg 4.0mm: 10 kg |
| Mirror property | Non-tempered |
Durability Tests
| Testing Content | Test Standard | Test Results |
| Focus ratio | Laser Facility Inspection | ≥99% |
| CASS testing | EN ISO9227(120h;Corrosion<1.5mm) | <200μ |
| SS testing | EN ISO9227(480h;Corrosion<1.0mm) | <50μ |
| Anti-Humidity testing | EN1036-1(40ºC,100%Hr;480h;Corrosion<0.2mm) | No corrosion found |
| Physical property | EN1036-1 | Paint Thickness>110μ Hardness>150 |
| Anti-UV testing | UVA340,60ºC;39W/SQM | Reflectivity loss<0.2% |
| Accelerated testing | Xenon arc lamp exposure 4500h | Reflectivity loss<0.2% |
| Anti-Abrade | ASTM D968 | <400g/μ |
Mechanical Characteristics:
| Mechanical strength (MPa) | 45 Annealed |
| Young modulus (GPa) | 70 |
| Poisson ratio | 0.2 |
| Scratch hardness | 6 |
| Knoop hardness | 470 |
| Density | 2.5×10³ kg/m³ |
MigoGlass Competitive Advantages
--- Direct factory prices, NO COMMISION
--- 100% Quality Guarantee
--- Professional export packing
--- Quick Delivery. 15-30 days
--- 20 Years export experience
--- Excellent customer service
FAQ:
1. MOQ: 1 × 20 GP. Our salesperson can help calculate the loading quantity of a 20ft container.
2. Payment terms: T/T; 30% advance payment, 70% balance against the copy B/L.
3. Delivery time:Normally, goods will be delivered to the cargo vessel within 30 days after receiving the
advance payment. In the case of urgent order, we can deliver them within 15 days.
4. Shipping port: Qingdao port
5. Samples: Small glass samples can be provided at our cost.
Contact Us:
To get the latest prices, feel free to email or call us (pls state clearly mirror thickness, sizes, edge grinding, order quantity, destination port...).We will get in touch with you within 24 working hours.
