Qingdao Migo Glass Co., Ltd. is one of the most reliable manufacturers and suppliers of squash court glass wall in China. With abundant experience, we warmly welcome you to wholesale high-grade squash court glass wall in stock here from our factory. If you have any enquiry about custom service, please feel free to email us.
Products Description
MIGO Squash Court Wall Glass is tempered safety glass designed for squash court back walls, viewing sections, glass doors and transparent court enclosures, with customized panel sizes, acid-etched safety markings and screen-printed patterns available for different court systems.
The glass combines spectator visibility with court-specific processing and visual marking options, making it suitable for squash clubs, training centers, sports facilities and competition court projects.
Product Specifications
| Item | Specification |
|---|---|
| Product Name | Squash Court Wall Glass |
| Glass Type | Tempered Safety Glass |
| Thickness | 10mm / 12mm |
| Raw Glass | Clear Glass |
| Edge | Flat Polished |
| Hole Processing | Countersunk Holes / Customized |
| Surface Treatment | Acid Etching / Screen Printing |
| Printed Patterns | Honeycomb / Dots / Custom Graphics |
| Common Colors | White / Red / Purple |
| Panel Configuration | According to Court Design |
| Application | Back Wall / Viewing Wall / Door / Glass Enclosure |
| Standards | EN 12150-1 / ANSI Z97.1 / AS/NZS 2208 / GB 15763.2* |
| Certificates | CE / SGCC / ISO 9001* |
Standard Dimensions (WSF/PSA Compliant)
The following dimensions are commonly used as reference dimensions for standard squash court design:
| Court Dimension | Metric | Imperial |
|---|---|---|
| Court Length | 9.75 m | 32 ft |
| Court Width | 6.4 m | 21 ft |
| Front Wall Height | 4.57 m | 15 ft |
| Back Wall Height | 2.13 m | 7 ft |
| Total Court Height (Glass Walls) | 5.64 m | 18.5 ft |

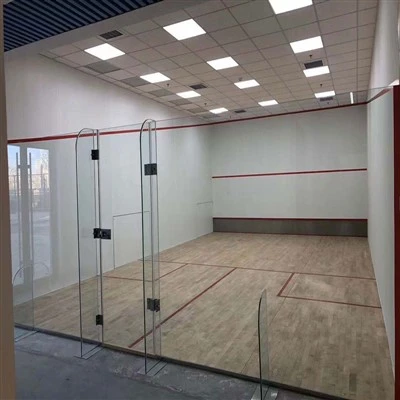

Glass Walls for Modern Squash Courts
Glass walls create a visual connection between the playing area and the surrounding venue. Transparent sections allow spectators, coaches and facility staff to follow the game while maintaining the physical enclosure required by the court design.
Depending on the squash court concept, glass can be incorporated into different sections of the enclosure. The exact panel dimensions, thickness, support structure and installation method should follow the approved court system.
For commercial squash clubs and sports centers, glass walls also contribute to a more open and modern appearance compared with completely opaque court enclosures.
Safety Markings on Squash Glass
Because large transparent panels may be difficult to notice from certain viewing angles, squash glass can incorporate visible markings. MIGO provides several processing options according to different court designs.
Acid-Etched Stripes
Permanent stripes can be etched directly onto selected areas of the glass. Unlike adhesive films, acid etching modifies the glass surface and is intended as a permanent visual treatment.
This option is particularly suitable for transparent back-wall sections where clearly identifiable glass boundaries are required.
Screen-Printed Dots
Colored or white dots can be printed onto the glass according to the required pattern, spacing and coverage.
The printing modifies the visual effect of the transparent panel while retaining spectator viewing through the court enclosure.
Honeycomb Patterns
White or colored honeycomb graphics can be applied to larger glass wall areas to create a distinctive semi-transparent appearance.
Pattern density, position and color can be adjusted according to the approved court design.
Why Choose Us?
Complete Squash Glass Supply
MIGO can organize back-wall panels, viewing sections, door glass and other required glass components according to the complete court layout.
Multiple Marking Options
Acid-etched stripes, screen-printed dots and honeycomb patterns are available for different visual and functional requirements.
Customized Court Processing
Countersunk holes, polished edges and other required processing can be completed according to confirmed mounting drawings before tempering.
Consistent Printed Panels
For projects containing multiple printed glass panels, production can follow approved artwork to maintain consistent pattern positioning and appearance.
Project-Based Production
Different panel dimensions and configurations can be organized according to their installation positions, supporting both individual courts and multi-court sports facilities.
FAQ
Q1. Why are honeycomb patterns used on squash court glass walls?
Honeycomb printing modifies the transparency and visual appearance of the glass, creating a more controlled background while retaining the architectural effect of a glass enclosure.
Q2. Can the printing coverage on squash glass be customized?
Yes. Pattern density, coverage, position and dimensions can be produced according to approved artwork and project requirements.
Q3. Can different printing colors be used on the glass?
Yes. White, red, purple and other available colors can be considered depending on the required court appearance and printing design.
Q4. Is a full-glass squash court different from a standard glass back-wall court?
Yes. A standard court may use glass mainly in selected viewing areas, while a full-glass concept incorporates transparent or printed glass across more sections of the enclosure.
Q5. Can club logos or custom graphics be printed on squash court glass?
Yes. Custom graphics can be evaluated according to the artwork, printing area and panel configuration, allowing the glass design to coordinate with club or venue branding.
