Qingdao Migo Glass Co., Ltd. is one of the most reliable manufacturers and suppliers of nhl standard rink glass in China. With abundant experience, we warmly welcome you to wholesale high-grade nhl standard rink glass in stock here from our factory. If you have any enquiry about custom service, please feel free to email us.
Products Description

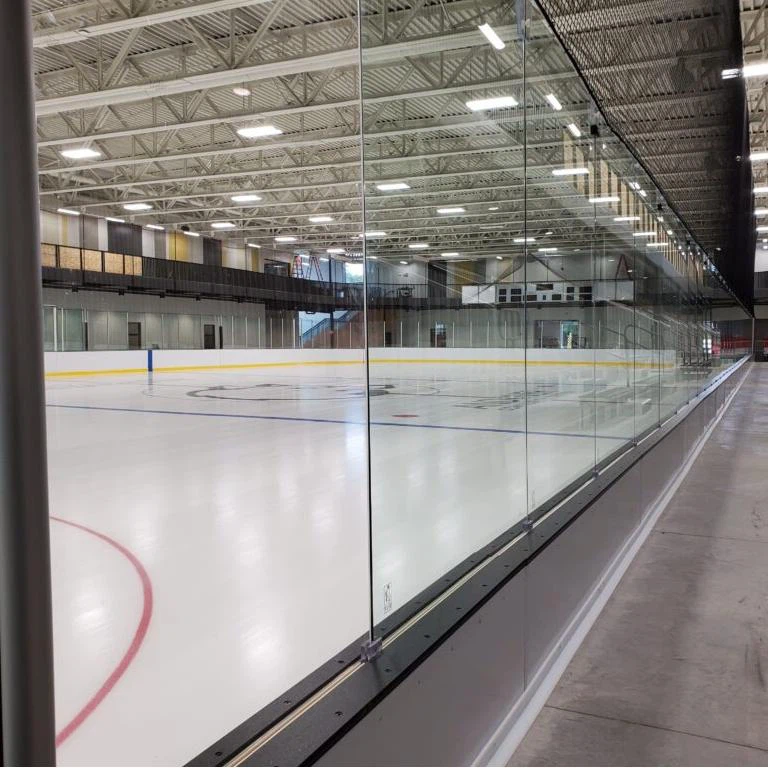

MIGO NHL Standard Rink Glass is tempered safety glass designed for ice hockey rink protective barrier systems. It provides a transparent enclosure between the playing area and spectators while accommodating the requirements of professional hockey arena construction.
Available in 12mm and 15mm thickness options, the glass can be customized according to rink drawings, panel positions and supporting board systems.
Products Specifications
| Item | Specification |
|---|---|
| Product Name | NHL Standard Rink Glass |
| Glass Thickness | 12mm / 15mm |
| End-Zone Glass Height | 8 ft (2.44m) above boards |
| Side-Zone Glass Height | At least 6 ft (1.83m) above boards |
| Typical Panel Width | 1220–1520mm |
| Installation | Ice Hockey Rink Board Systems |
| Packaging | Protective Export Packaging |
Glass thicknesses and panel widths are MIGO project specifications provided in the source material, not NHL-mandated dimensions. Final configurations require engineering review and applicable approval.
NHL Rink Dimensions & Glass Requirements
| Item | NHL Rink Specification |
|---|---|
| Ice Surface Length | 200 ft (60.96m) |
| Ice Surface Width | 85 ft (25.91m) |
| Corner Radius | 28 ft (8.53m) |
| Ideal Board Height | 42 in (1.07m) |
| End-Zone Protective Glass | 8 ft above boards |
| Side-Zone Protective Glass | Minimum 6 ft above boards |
Protective glass is installed above the rink boards to separate the playing area from spectator zones. The glass and supporting components must be designed as an integrated barrier system.
Protective Glass for Hockey Arenas
Tempered rink glass offers improved mechanical strength compared with ordinary annealed glass. Its transparent surface provides clear viewing areas for spectators, while its breakage characteristics differ from conventional glass.
Glass thickness, panel width and support arrangements must be selected according to the rink design and relevant safety requirements.
FAQ
Q: What thickness is available for NHL-style rink glass?
A: MIGO offers 12mm and 15mm tempered glass options. Final thickness selection depends on the protective barrier system and project requirements.
Q: What is the required height of NHL rink glass?
A: Under NHL rink rules, protective glass extends 8 feet above the boards at the ends and at least 6 feet along the sides.
Q: Can MIGO customize rink glass dimensions?
A: Yes. Panel dimensions can be specified according to rink drawings and installation requirements.
Q: Is tempered glass suitable for rink barriers?
A: Tempered glass can be used in properly designed hockey rink barrier systems. The complete system must meet applicable safety and performance requirements.
