Qingdao Migo Glass Co., Ltd. is one of the most reliable manufacturers and suppliers of diamond polished wired glass in China. With abundant experience, we warmly welcome you to wholesale high-grade diamond polished wired glass in stock here from our factory. If you have any enquiry about custom service, please feel free to email us.
Products Description
A wire mesh is inserted during the manufacturing of plate glass, allowing the glass to adhere together when cracked. Can be qualified as safety glass for some applications. Diamond-polished wired glass is a traditional annealed glass with a steel wire grid, valued for its fire resistance, safety retention, and classic appearance. While it remains useful in fire-rated and decorative applications, alternatives like Georgian polished wired glass, square mesh obscure wired glass are now preferred in high-risk areas for better impact protection.
Types of Safety Wired Glass

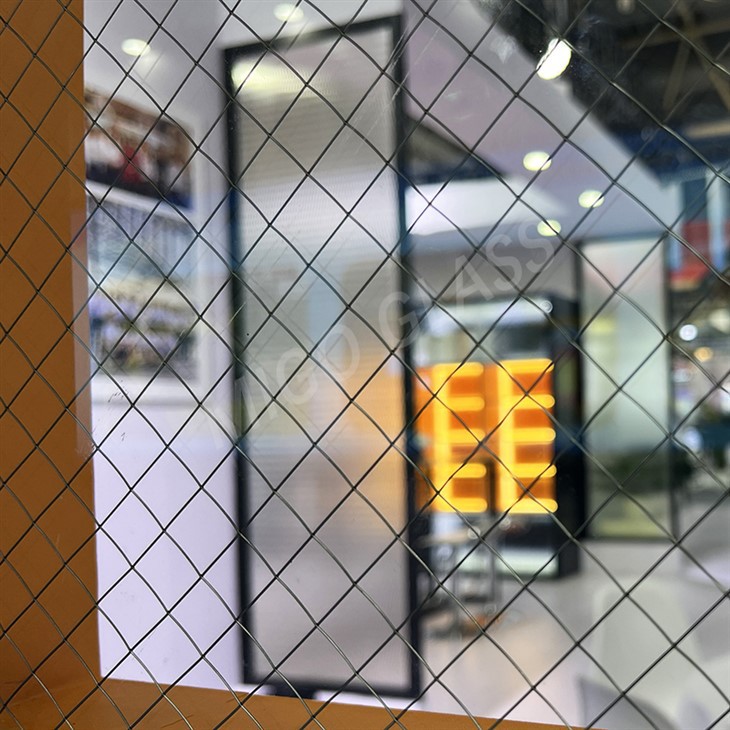

Diamond Polished Wired Glass
Diamond Polished Wired Glass is a transparent annealed glass with an embedded diamond-pattern steel wire mesh (non-tempered).
Appearance:
Diamond-shaped crossing with 12–19mm spacing between wire intersections. And the wire diameter is typically 0.46–0.56mm.
REI Rating: 30-90 minutes

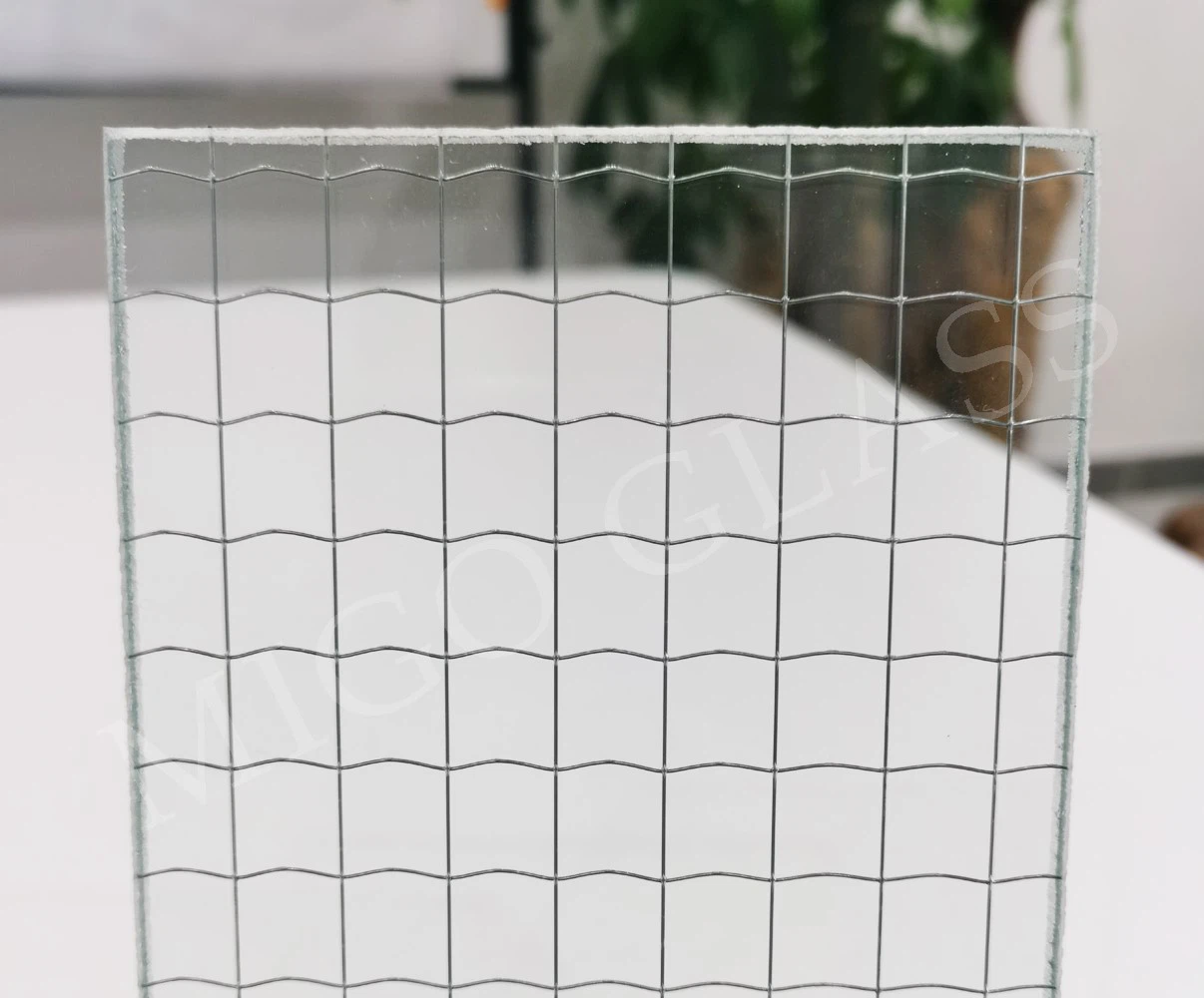

Georgian Polished Wired Glass
Georgian polished wired glass is a transparent annealed glass with an embedded steel wire mesh in a grid pattern.
Appearance:
Clear flat glass with square wire mesh (typically 12.5mm or 25mm mesh spacing).
REI Rating: 30-90 minutes
Technical Specifications
Thickness Options: Typically 6mm, 6.8mm, 8mm and 10mm
Fire Ratings: EI30 to EI60 available
Surface Quality: Ra 0.2 micron polished finish 4
Light Transmission: Up to 85% depending on thickness
| Parameter | Specification |
|---|---|
| Thickness | Typically 6mm, 6.8mm, 8mm and 10mm |
| Mesh Spacing | 12–19mm (center-to-center) |
| Wire Diameter | 0.5mm ±0.04 (typical) |
| Surface Finish | Diamond polished wire glass(Ra ≤0.2μm) |
| Light Transmission | 84–87% (6mm, clear glass) |
| Fire Rating | EI30–EI60 (system-dependent) |
| Impact Resistance | Class C (EN 12600) |
| Industry Standards |
Fire Rating: BS 476 Part 22, EN 1364-1 Safety: EN 12600 (Class C) Optical Quality: ISO 9802 (light distortion testing) |
Why MIGO Safety Wired Glass?
Enhanced Fire Protection
Embedded wire mesh helps maintain glass integrity during fire exposure.
Improved Safety Performance
The wire network holds broken fragments together after impact.
Reliable Manufacturing Quality
Strict quality control ensures consistent performance and appearance.
Custom Processing Available
Cut-to-size, edge finishing, drilling, and further fabrication services.
Durable and Practical
Suitable for high-traffic and safety-critical environments.
Multiple Glass Options
Available in clear, patterned, polished, and fire-rated configurations.
Export-Ready Packaging
Strong wooden crates and protective packing for global shipping.
Professional Project Support
Technical assistance and responsive service from inquiry to delivery.
Would you like details on suppliers, cost comparisons, or modern alternatives? Contact MIGO GLASS for more information.
MIGO GLASS - Safe, Reliable, and Built for Fire Protection Applications.
