What is Copper-free Mirror?
A copper-free mirror, also known as an eco-friendly mirror or environment-friendly mirror, is a type of silver mirror that stands out for its lack of copper and lead content. Unlike traditional silver mirrors that use copper compounds in their coatings to protect the silver layer from oxidation, copper-free mirrors are produced through a chemical deposition process. A specially treated silver layer is applied to high-quality float glass, followed by a special metallic film that contains little to no lead or copper instead of copper. Two layers of paint are then added for additional chemical and physical protection, safeguarding the back side from corrosion spots and scratches, similar to glass coatings. The absence of copper and lead in copper-free mirrors makes them highly environmentally friendly.

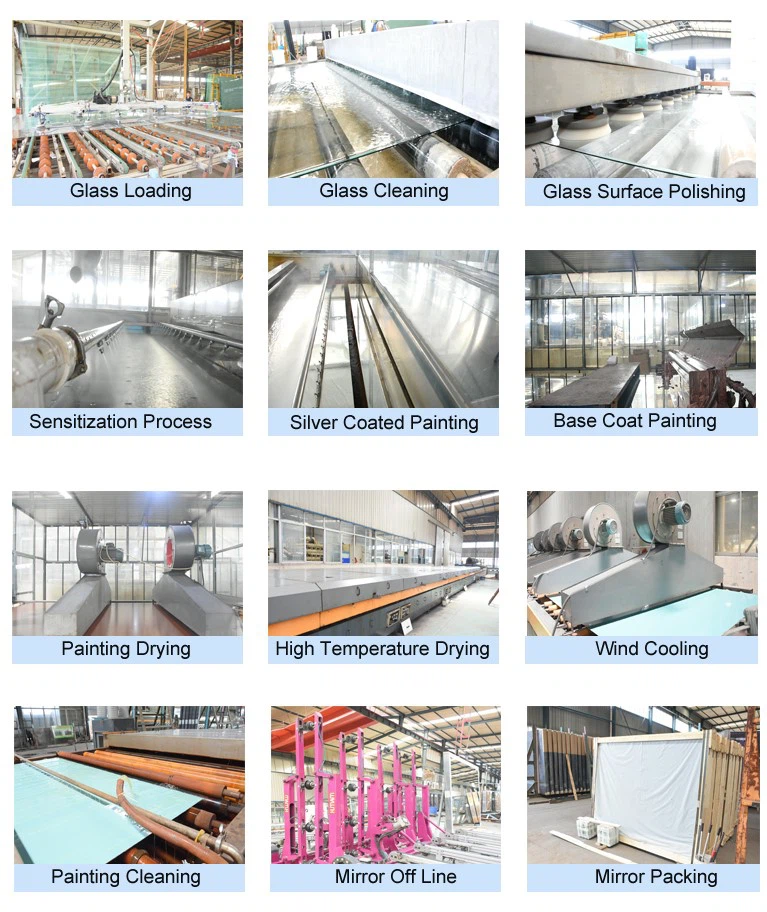

Production of Copper-free Mirror
Traditionally, mirrors have utilized copper as a backing material to improve reflectivity and longevity. However, due to concerns regarding the environmental impact of copper production and potential health hazards, copper-free alternatives have been developed. The production process of copper-free mirrors typically involves the following steps:
Substrate Selection: Select an appropriate substrate material that offers a smooth surface for the mirror coating. Common substrate materials include glass, acrylic, and polycarbonate.
Mirror Coating: Apply a reflective coating to one side of the substrate material. This coating is commonly composed of materials like aluminum, silver, or a combination of both. Techniques such as physical vapor deposition (PVD), chemical vapor deposition (CVD), or other methods are used during the coating process to ensure uniformity and adhesion.
Protective Layer: Add a protective layer over the reflective coating to improve durability and resistance to scratches, corrosion, and environmental factors. This layer may be made of materials such as silicon dioxide or other transparent coatings.
Quality Control: Implement thorough quality control checks throughout the production process to verify that the mirrors adhere to specified standards for reflectivity, clarity, and durability. This may involve visual inspections, measurement of optical properties, and performance testing under varying conditions.
Copper-free Mirror Specifications
Thickness: 3mm, 4mm, 5mm, 6mm
Size options: 2140x3300mm, 2140x3660mm, 2440x3300mm, 2440x3660mm, 2140x1650mm, 2140x1830mm, 2440x1650mm, 2440x1830mm, 1220x1650mm, 1220x1830mm
Types of Mirrors: Clear Copper-free Mirror, Ultra-clear Copper-free Mirror
Available Processing: Cutting, Edging Grinding, Beveling, Laminating, etc.
Why Choose Copper-free Mirror?
Traditional silver mirrors utilize copper coatings in their production process. As copper is a heavy metal element, the disposal of copper in the manufacturing and usage of silver mirrors can have environmental repercussions. Additionally, conventional silver mirrors contain lead in their varnish, which is also detrimental to the environment. In contrast, copper-free mirrors employ materials that are free of lead and copper, aligning with the principles of environmental conservation.
Typically, a standard silver mirror undergoes copper layer application post-silver plating. However, a copper-free mirror substitutes this with a specific metal film, reducing oxidation and enhancing corrosion resistance. Generally, copper-free mirrors take around a year to oxidize, with the timeframe being influenced by the surrounding environment.
Copper-free mirrors boast characteristics such as clear imaging, high reflectivity, brightness, good color reproduction, and enhanced durability. Consequently, the quality of copper-free mirrors surpasses that of ordinary mirrors.
Applications of Copper-free Mirror
Copper-free mirrors find utility in various settings, including:
- Glass walls in fitness centers, dance studios, and home gyms
- Bathrooms
- Display cases
- Wardrobe dressers
- Tables
